Specialized Bolt Kit, MY16-18 SJ FSR (I1), SUSPENSION PIVOT BOLT KIT

Name: Centraal Cycle
Address: 237 Cabot Street, Beverly, MA, 01915, US
Telephone: 978-922-2400
Price range: $$

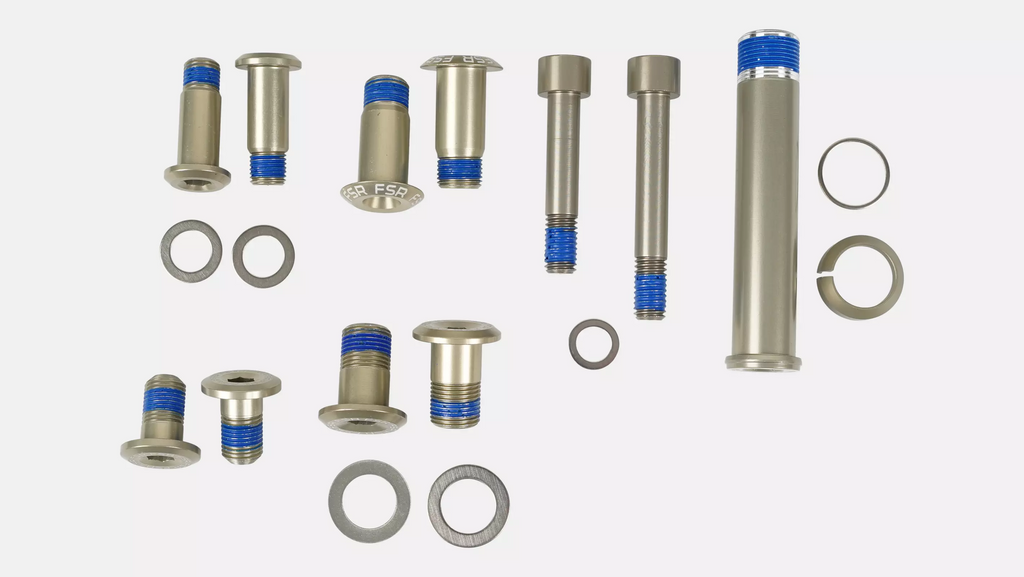

Suspension pivot bolt kit for 2016 - 2018 Stumpjumper and Rhyme FSR bikes

Main Pivot (Chainstay) Axle: 15mm W x 77.5mm L - Alloy - 1 pcs.
Main Pivot (Chainstay) Washer: 15.5mm ID x 18mm OD x 0.7mm W - Steel - 1 pcs.
Main Pivot (Chainstay) Axle Cone: 15mm ID x 20.5mm OD x 6.7mm W - Alloy - 1 pcs.
Seatstay Horst Link Pivot Bolt: 11mm W x 28.3mm L - Alloy - 2 pcs.
Seatstay Horst Link Pivot Washer: 12.8mm ID x 20mm OD x 0.5mm W - Steel - 2 pcs.
Shock Link to Seat Tube Pivot Bolt: 10mm W x 17.4mm L - Alloy - 2 pcs.
Shock Link to Seatstay Pivot Bolt: 10mm W x 28mm L - Alloy - 2 pcs.
Shock Link to Seatstay Pivot Washer: 10.1mm ID x 15.5mm OD x 0.5mm W - Steel - 2 pcs.
Shock Link to Shock Extension Pivot Bolt: 12mm W x 20.5mm L - Alloy - 2 pcs.
Upper Shock Eye Bolt (Carbon Frame): 8mm W x 54mm L - Alloy - 1 pcs.
Upper Shock Eye Bolt (Alloy Frame): 8mm W x 42mm L - Alloy - Torque: 113 in-lbf (12.8 Nm) - 1 pcs.
Upper Shock Eye Washer: 8.4mm ID x 12.5mm OD x 0.5mm W - Steel - 1 pcs.
Sold Seperately: Lower Shock Eye Bolt: 8mm W x 14mm L - Steel - Torque: 175 in-lbf (19.8 Nm) - SKU: S160500002
