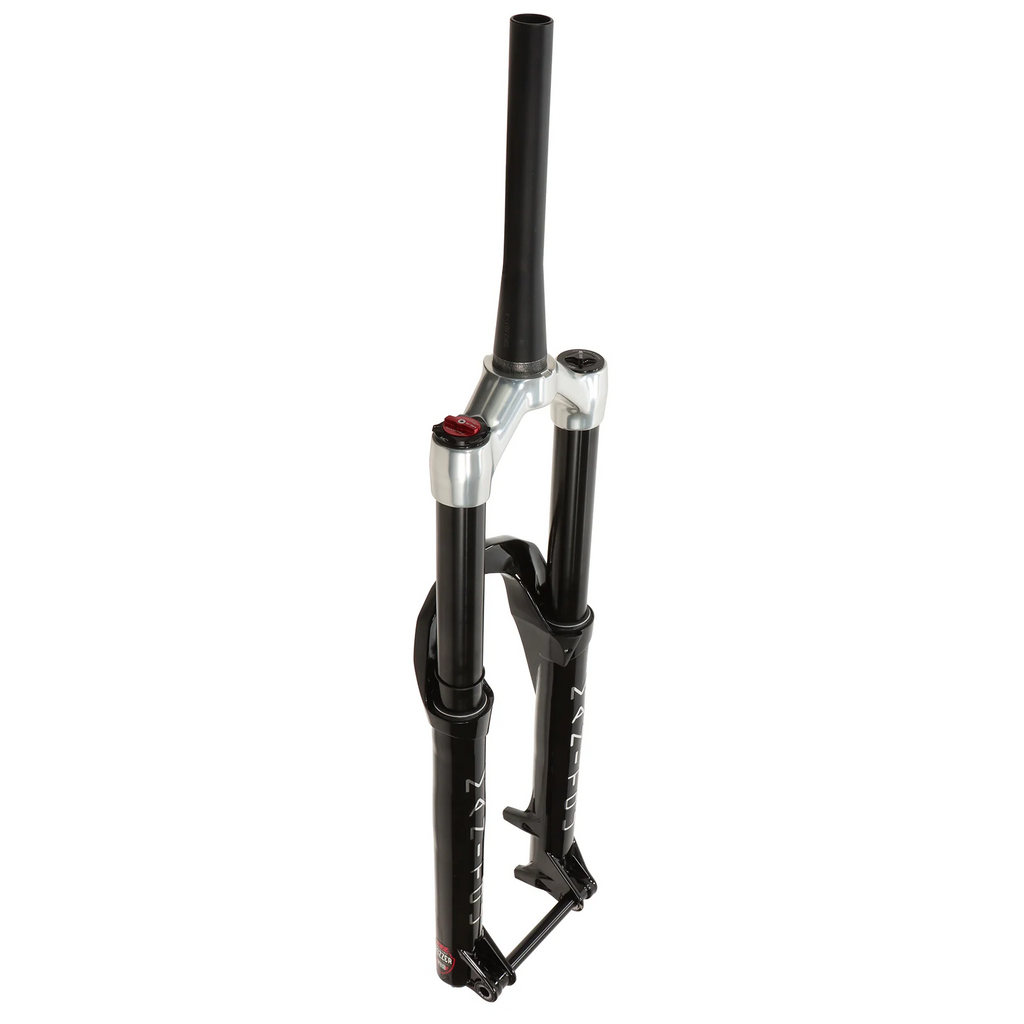

The Mezzer Pro sits at the pinnacle of lightweight long-travel suspension performance. Built for aggressive trail and enduro riders chasing maximum speed with minimum weight, the Mezzer Pro blends exceptional chassis stiffness, unmatched tunability, and benchmark suspension sensitivity into one race-ready platform.
Built around Manitou’s 37mm chassis and signature Reverse Arch design, the Mezzer Pro achieves the stiffness of a 38mm fork while remaining among the lightest in its class. Optimized around the most commonly ridden travel ranges, the revised chassis reduces breakaway friction and improves bushing overlap for smoother, more controlled suspension performance across every part of the stroke.
With advanced damping controls, independent rebound adjustments, and the latest MC2-Pro-X damper, the Mezzer Pro delivers uncompromising traction, support, and confidence for riders pushing the limits of modern enduro riding.
Key Features
- New air Spring - improved bump compliance and travel usage for a wider range of riders and conditions.
- 4 way adjustable damper - provides improved support with less rider feedback. Allows for maximum adjustability and fine tuning of both compression and rebound.
- Air backed bladder - Lowest break away force with maximum consistency on during demanding riding conditions.
- Updated chassis - crown machining reduces weight, casting updates with new bushing bore machining process, drop out machining (MBA red ring) and arch ribbing improves casting stiffness to improve bushing alignment to reduce binding and create a smoother fork throughout the travel.
- Updated casting volume and bottom out system - allow full travel to be used more easily when needed with less overlap between bottom out bumper, HBO and end of stroke support from air spring.
| WHEEL SIZE | 29" |
| WEIGHT | 2220g |
| OFFSET | 44mm |
| AXLE TO CROWN | 150mm = 561mm, add 10mm of height per 10mm of travel |
| SPRING | Dorado Air Active Spring Piston w/ IRT |
| COMPRESSION DAMPING | MC² PRO-X with HBO Sealed Cartridge Air Backed Bladder |
| REBOUND DAMPING | Sealed Cartridge TPC² |
| ADJUSTMENTS | Air, IRT Pressure, Rebound, HSC, LSC, HSR, LSR, Air Backed Bladder |
| STEERER | 1.5" Tapered |
| CROWN | Forged Aluminum, Hollow Bore polished silver |
| LEG DIAMETER | 37mm |
| LEG MATERIAL | LT Series straight Wall Aluminum |
| BRAKE | Post Mount 180mm (223mm Max) |
| AXLE | 15mm x 110mm Hexlock SL2 |
| MAX TIRE SIZE | 69mm w/ Fender |
| INCLUDED | TSR, Fender Kit, Travel Spacers |
| ASTM RATING | 5 |
| GVWR | 136kg ASTM 5 / 150kg ASTM 4 |
